3RD-07-23

Overview

Designer Plan Number:

3RD-07-23

Bedrooms:

5

Bathrooms:

5

1/2 Bathrooms :

1

Levels:

1.5

Sq. Ft.

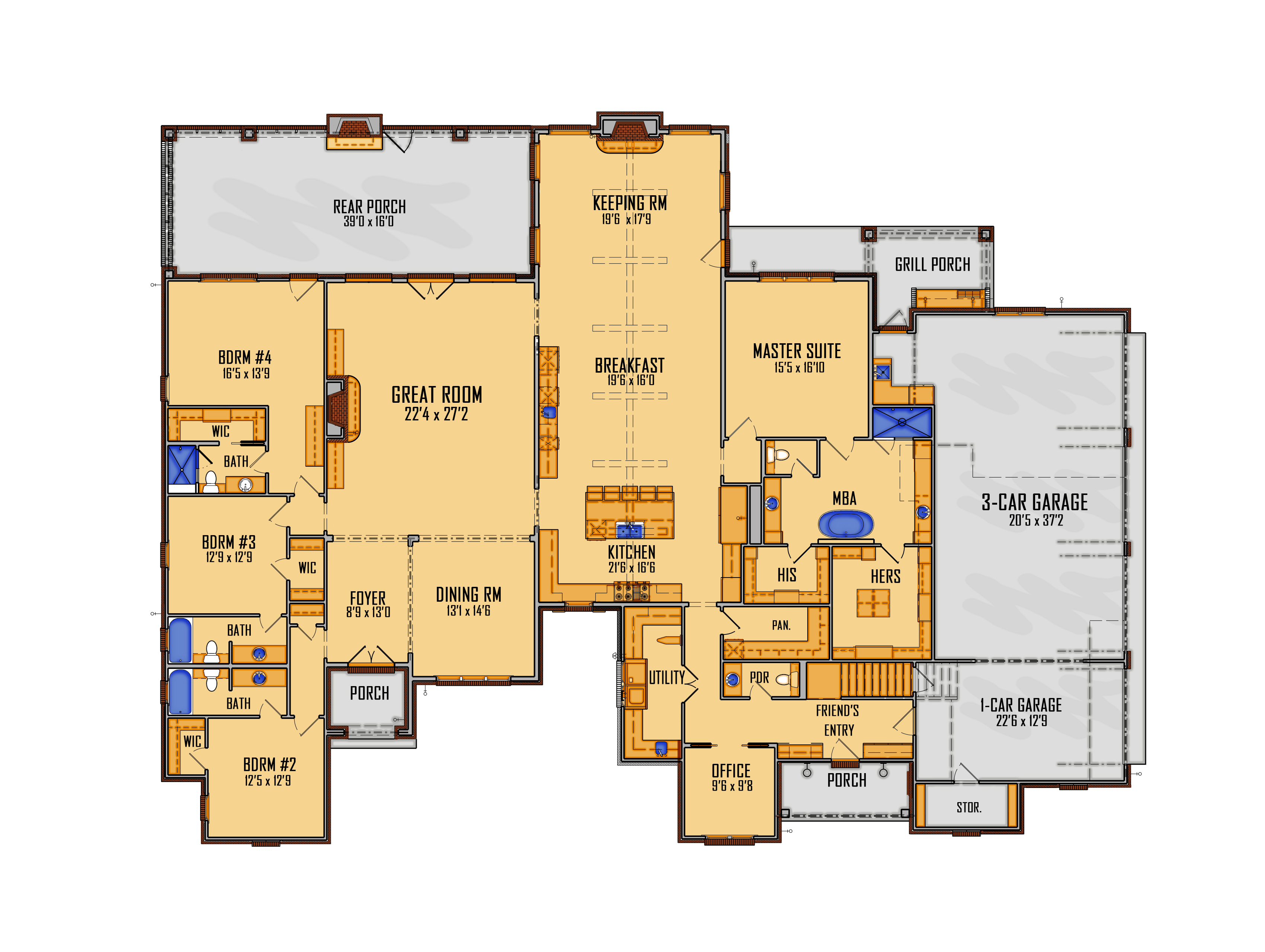

First Floor:

4365

Porches:

882

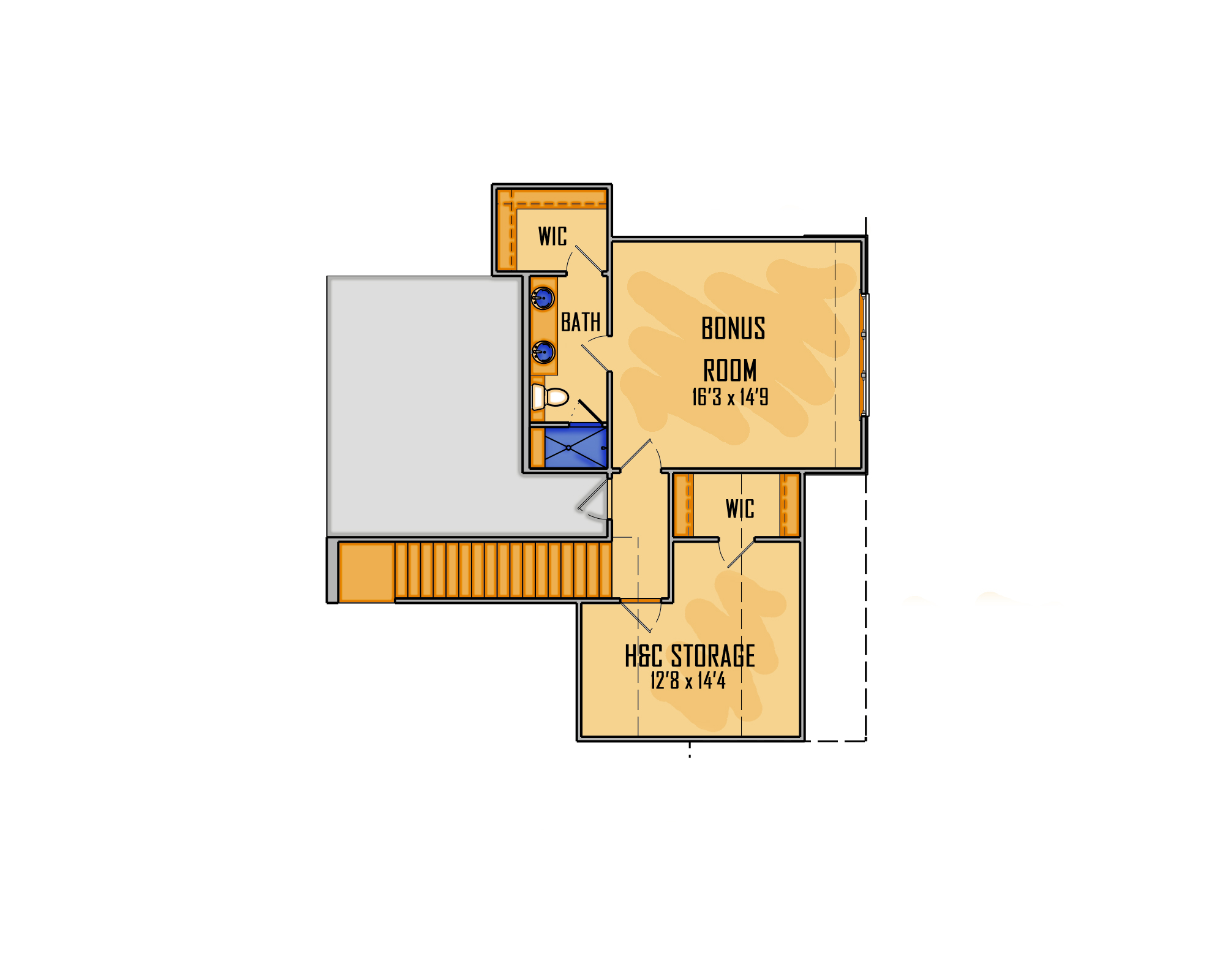

Bonus Room:

694

Total Heated and Cooled:

4492

Total Sq. ft. Under Roof:

6440

Purchase Options

5 Sets, +$1,500.00

9 sets, +$100.00

Mirrored Plan, +$225.00

PDF, +$400.00

•
•
•

Details

Features

General Options:

Bonus Room

Designed for Green

Designed for Views

Exercise Room

Flex Space

Formal Dining

Foyer

Keeping Room

Library

Mud Room

Nursery

Office

Open Floor Plan

Specialty Ceilings

Split Plan

Storage

Two Living Areas

Walk-in Closets

Workshop

Kitchen Options:

Double Ovens

Eating Bar in Kitchen

Island

Outdoor Kitchen

Prep Sink

Walk-in Pantry

Master Suite Options:

Master on First Floor

Dual Sinks in Master Bath

Enclosed Toilet Room

His & Her Closets

Separate Tub and Shower

Garage

Garage:

1193 w/ Storage

Garage Stalls:

4+

Garage Entry:

Side

Style:

Contemporary

European

French Country

Dimensions

Ridge Height:

ft.:

34

in.:

04

Width:

ft.:

104

in.:

03

Secondary Ceiling Height:

ft.:

10

in.:

0

Depth:

ft.:

77

in.:

04

Main Ceiling Height:

ft.:

12

in.:

0

Wall Framing:

2"x4" studwalls

Roof

Main Roof Slope:

14/12

Roof Material:

Shingles

Roof Framing:

Stick Built

Exterior Materials:

Brick

Siding

What's Included:

Cover Sheet

Cross Section{s}

Detailed Floor Plan(s)

Electrical Plans

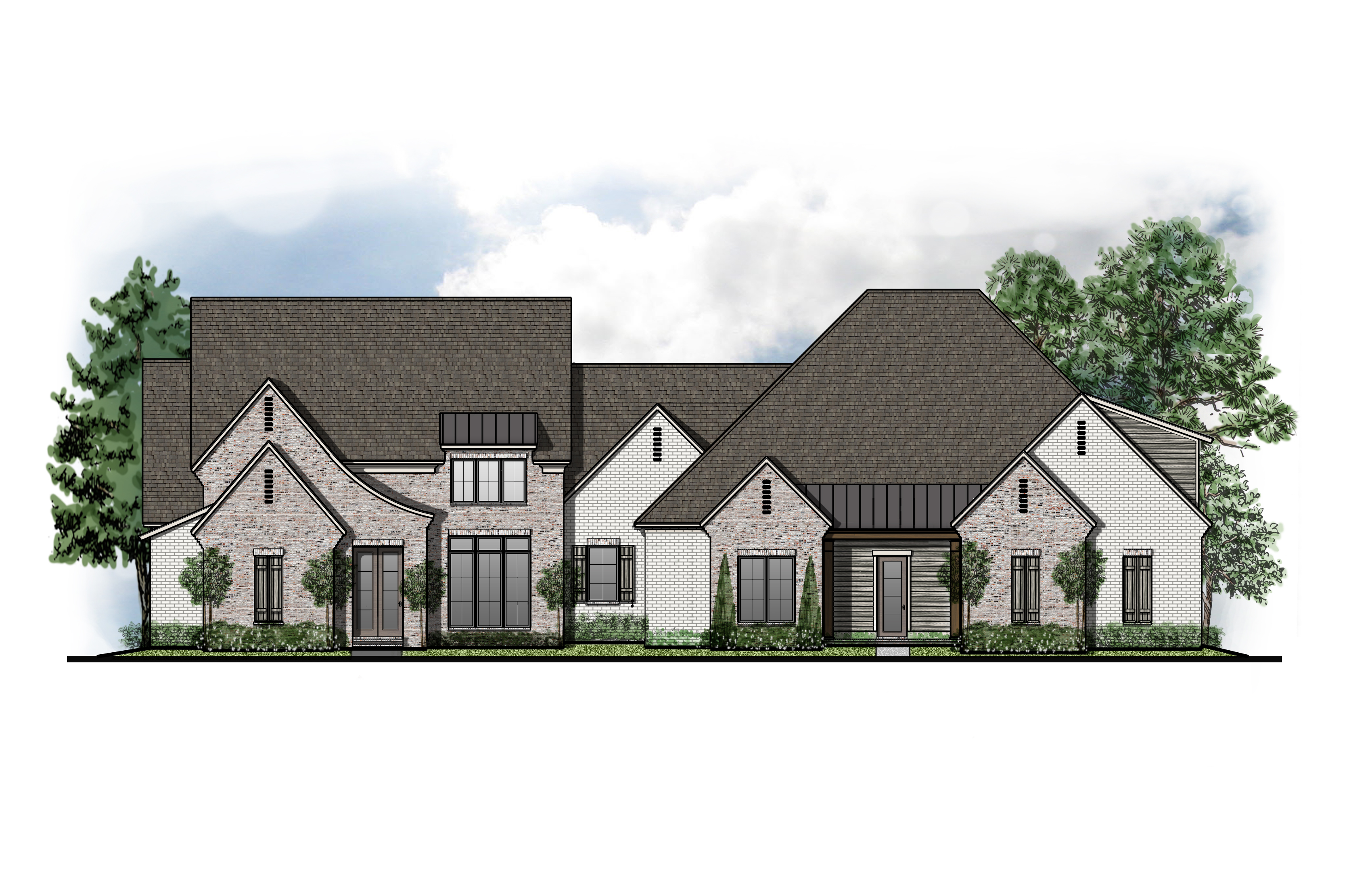

Exterior Views

Foundation plan

Roof Plan, Birds Eye View

Wall Section(s)

$0.00

SKU: 3RD-07-23

Price: $0.00
